MANET Routing Protocols using ns3

#AODV #OLSR #MANETs #DSDV #DSR

Download the Code here:
https://drive.google.com/open?id=1OkVOsifjN9UfQjPGvfR7OuS-x_GBRgCV

Check the Video for Detailed instruction and how to use the plots, graphs and source code.


Comparison of MANET routing Protocols 1. AODV
2. DSDV
3. DSR
4. OLSR
using NS3 (Network Simulator 3)
B.Tech, M.Tech, PhD...
1. Reactive Vs Proactive routing
2. PErformance comparison of MANET protocols
3. AODV Vs DSDV Comparison

https://www.nsnam.com and also at my channel.

What Version: ns-3.29
My Ubunut OS is: Ubuntu 18.04

This file we are going to use for our simulation:
/home/networks/ns-allinone-3.29/ns-3.29/examples/routing/manet-routing-compare.cc

Once you under stand the code, now lets run this example

Step 1: Copy the above file in to ~ns-3.29/scratch/ folder

Step 2: Understand this code.
Step 3: Run this code
Open the terminal, Go to ns-3.29 and run the following command

$] ./waf --run scratch/manet-routing-compare

enable the following header file

#include "ns3/flo…

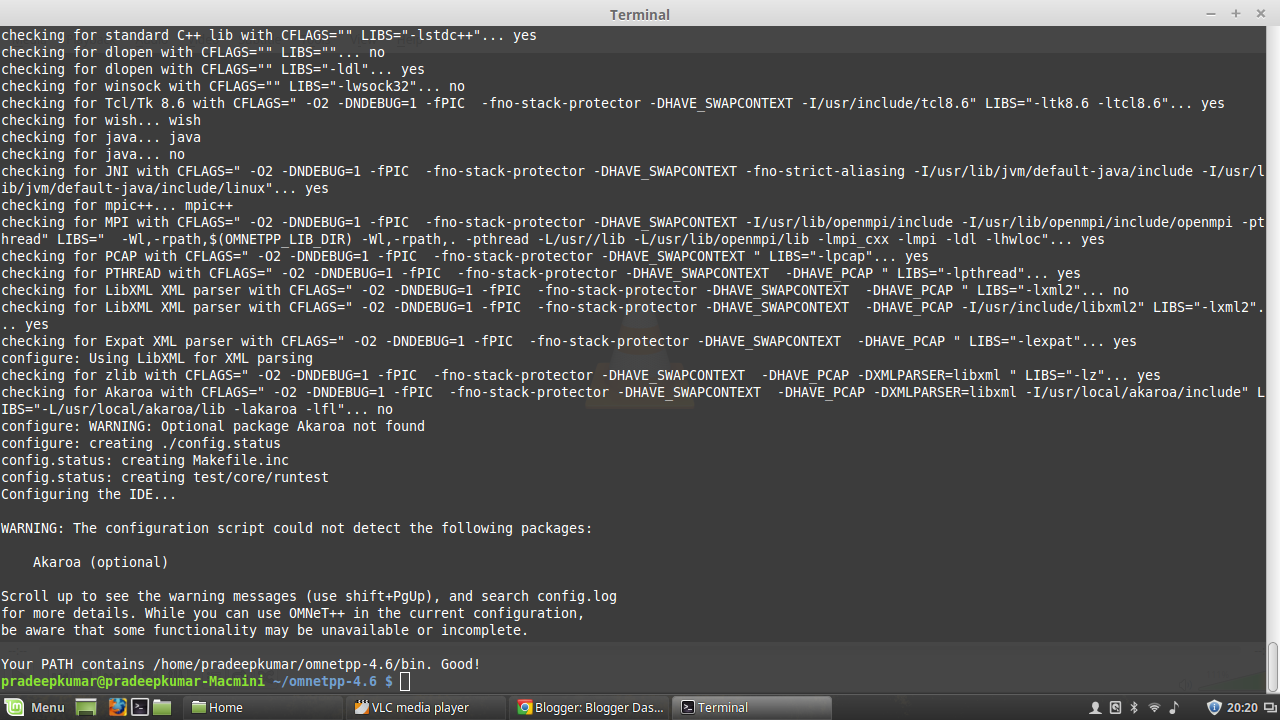

OMNeT++ installation in Linux Mint 17.1

Installing OMNeT++ in Linux is quite easier now. Unlike the older versions, the latest version installs perfectly fine.

OMNeT++ is a discrete event simulator like NS2, but quite easier in simulating the networks. OMNeT comes with the inbuilt graphics tools and other tools that are required to measure the performance of the networks.

This post will let you know the installation steps for OMNeT++ in Linux Mint 17.1

OS USed: Linux Mint 17.1 64 bit
OMNeT Version: 4.6

Assuming you have installed the OS just now.

$] sudo apt-get update
$] sudo apt-get install build-essential gcc g++ bison flex perl tcl-dev tk-dev blt libxml2-dev zlib1g-dev default-jre doxygen graphviz libwebkitgtk-1.0-0 openmpi-bin libopenmpi-dev libpcap-dev autoconf automake libtool libproj0 libgdal1-dev libfox-1.6-dev libgdal-dev libxerces-c-dev

Download the software from http://omnetpp.org/omnetpp
Once downloaded copy the software to your /home folder (in my case, it is /home/pradeepkumar/
$] tar zxvf omnetpp-4.6-src.tgz
$…
